DAMC-DS5014DR

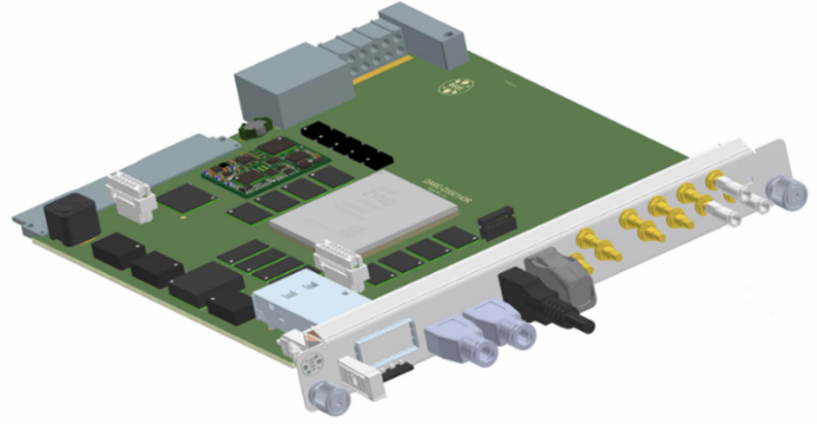

Picture of DAMC-DS5014DR

Board Description

The DAMC-DS5014DR is the most versatile 14-bit, 8-channel Digitizer among the other available MTCA digitizer families. It offers a broad range of sample rates at the MicroTCA form factor and a selectable AC or DC-coupled analog front-end, making it ideal for various detectors in advanced measurement scenarios. Its exceptional dynamic performance makes the DS5014DR well-suited for pulse-capture applications and RF/IF sampling.

Building Block

The core component of the DS5014DR module is the AMD Zynq UltraScale+ RFSoC. The chip offers low-noise ADCs with a sampling rate up to maximum 5 GSPS with a wide input bandwidth of 6 GHz and low-noise DACs with a high sampling rate of 9.85 GSPS, which are attractive components for a multiple of scientific applications. The RFSoC includes plenty of digital resources and multi-core ARM processors that are combined with 3 independent DRAM channels for versatile processing implementations.

Highlights

  • 5.0 GSPS per channels ADC sampling rate
  • 6.0 GHz analog bandwidth (-3 dB)
  • Single-ended analog RTM connection (Class RF1.1)
  • 8 analog inputs and 8 analog outputs via RTM
  • Alternatively up to 8 analog inputs and/or outputs on front panel via coaxial SSMC connector
  • 3x DDR4 banks with up to 48 GB DRAM in total
  • Dual-Loop Low-Jitter PLL On-Board
  • 9.85 GSPS per channels DAC data rate
  • Up to 12 Trigger inputs and one Trigger output

Features

  • FPGA: AMD Ultrascale+ RFSoC XCZU47DR
  • Analog signal range 1 Vpp
  • AC or DC coupling, depending upon assembly variant
  • Internal or external clock reference and ref. output
  • White Rabbit support
  • Event timestamp
  • 8 Gsamples+ data memory (ADC: 14 bits, Timestamp: 32 bits)
  • PCIe Gen.4 x 8 and 100G Ethernet data interfaces
  • Fully customized firmware code available for fast data processing
  • FPGA open for custom application (open-source BSP)
  • Yocto Linux support
  • Standalone mode (can run without AMC CPU module)
  • Supported by all AMD development tools

Files

Licensing

This board is currently not licensed. If you’re interested in learning more or purchasing the board, feel free to reach out to us for further details!
