DAMC-DS812ZUP
Board Description

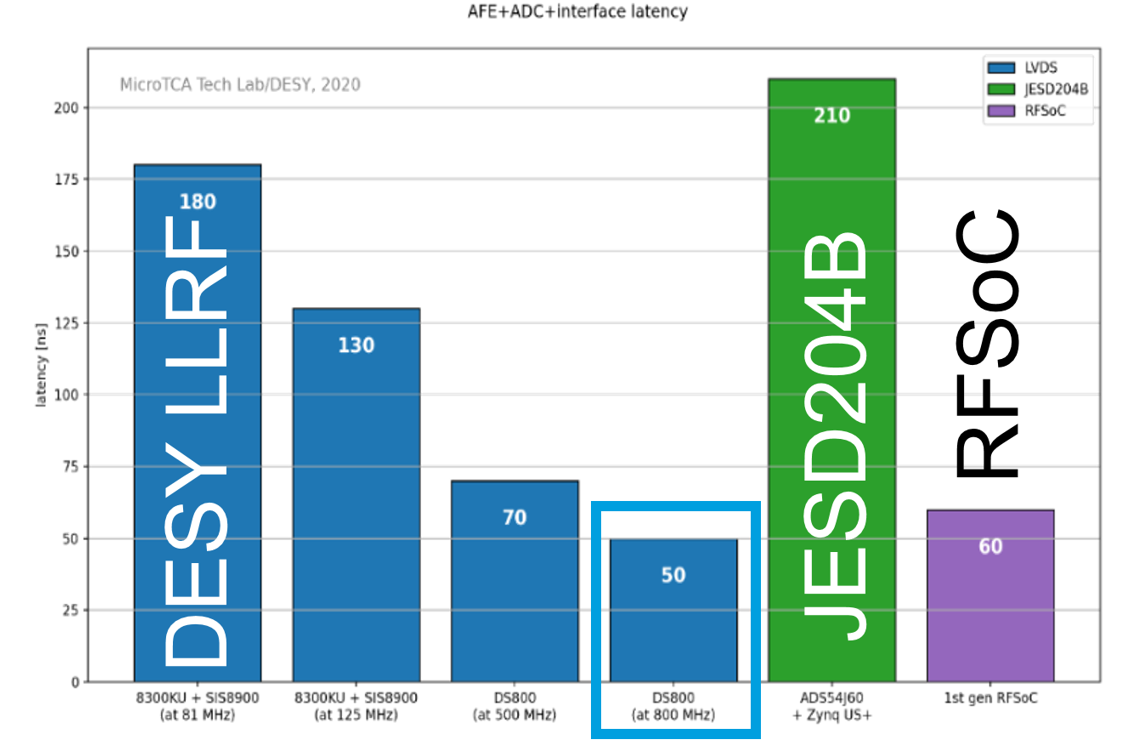

The DAMC-DS812ZUP is an 8-channel AMC Digitizer with 800 MSPS (or 500 MSPS variants) and 12 bits resolution. In software-selectable 4-channel dual-edge sampling mode, the ADCs allow sampling at 1600 MSPS (1000 MSPS). It is the first board that implements the analog Zone 3 Class RF 1.0. The connections to the RTM are realized with single-ended coaxial connections that allow using the full 2.7 GHz analog bandwidth of the ADCs. The ADCs are connected via parallel LVDS Interface to provide a low-latency connection. All channels can be captured simultaneously into 4GB DDR4 Memory.
Building Block
The core component of the DS5014DR module is the AMD Zynq UltraScale+ RFSoC. The chip offers low-noise ADCs with a sampling rate up to maximum 5 GSPS with a wide input bandwidth of 6 GHz and low-noise DACs with a high sampling rate of 9.85 GSPS, which are attractive components for a multiple of scientific applications. The RFSoC includes plenty of digital resources and multi-core ARM processors that are combined with 3 independent DRAM channels for versatile processing implementations.
Highlights
- 2.7 GHz analog bandwidth (-3dB)
- Single-ended analog RTM connection (Class RF1.0)
- Input from front (SSMC) or rear (RTM)
- 8x 800MSPS or 8x 500MSPS Variants
- Memory: 4GB DDR4-2666
- Dual-Loop Low-Jitter PLL On-Board
- 8 Trigger Inputs on Front Panel
Features
- FPGA: AMD Ultrascale+ MPSoC XCZU7CG
- Dual Edge Sampling with 4x 1.6GSPS (1GSPS)
- Dual-core Cortex-A53 ARM CPU with up to 1.3GHz
- PCIe Gen.3 x 8 Interface
- QSFP+ Connector with 4x 16.3 Gbps
- 3 different sources for clocking the ADCs
- On-board dual-loop low-jitter PLL
- Ultra-stable low phase-noise OCXO clock source
- Linux Support (eMMC and MicroSD)
- Standalone mode (runs without CPU Module)
- Supported by all AMD development tools
Files
Licensing
This board is currently not licensed. If you’re interested in learning more or purchasing the board, feel free to reach out to us for further details!
