DAMC-FMC1Z7IO
Board Description

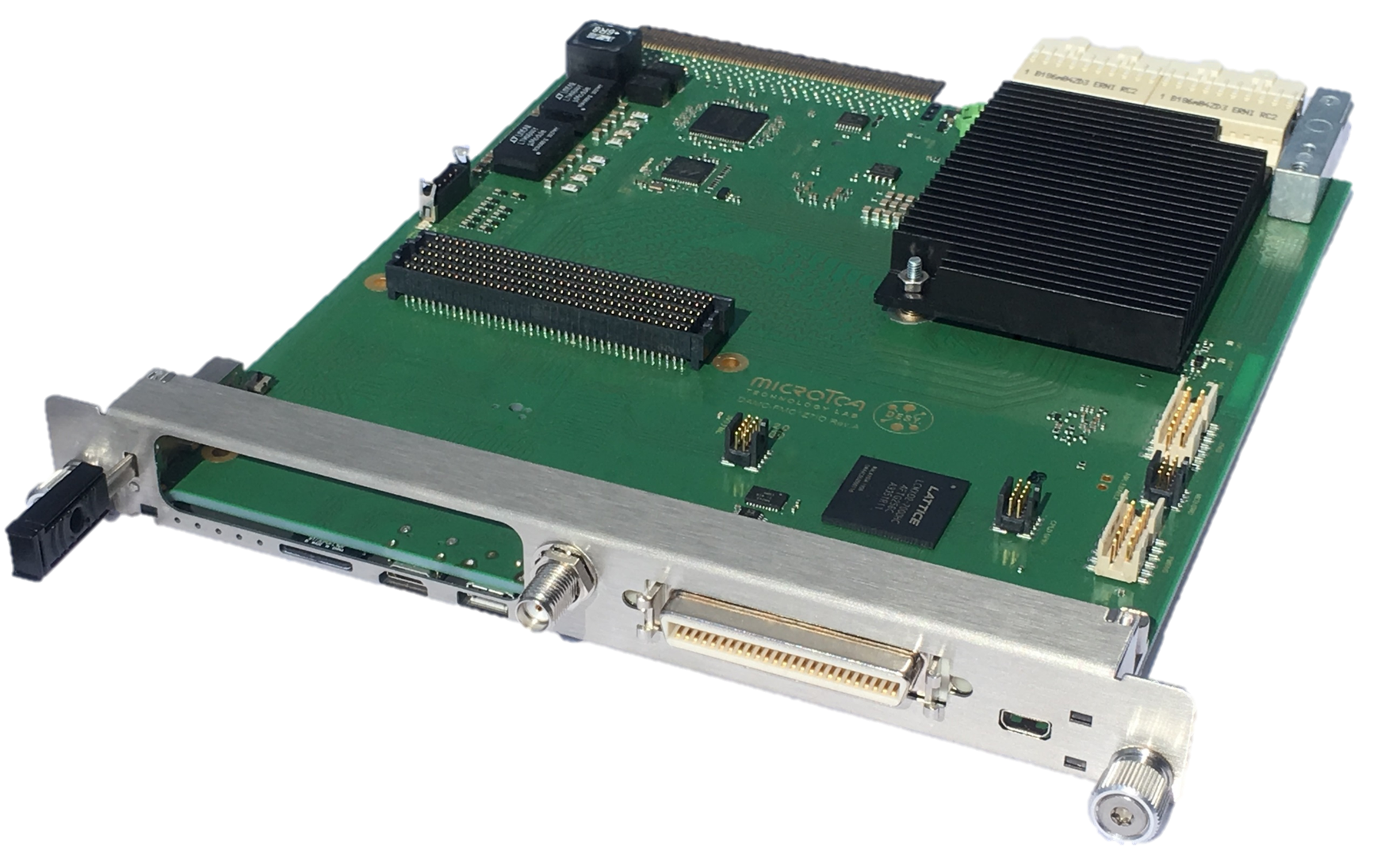

The DAMC-Z7IO is a Xilinx® Zynq®-7000 based IO Controller Board with one FMC socket in MTCA.4 form factor.
The carrier can be populated with the Xilinx XC7Z030, XC7Z035 or XC7Z045 SoC. The programmable logic features 125k/275k/350k logic cells, 400/900/900 DSP slices and 4x/8x Multi-Gigabit Transceivers running at up to 12.5Gbps.
All MTCA.4 backplane ports are connected to the FPGA. Gigabit Ethernet (Port 0) is connected to Processing System (ARM®) and provides convenient access for development and for running application servers. Eight M-LVDS Timing/Trigger signals and three TCLK lines are connected as well. The board features a DDR3 memory block with 1GB (32bits) connected to PS, operating at 1066 MHz.
The board has one FMC LPC socket that has 2/4 transceivers connected (HPC connector).
The RTM interface is designed according to class D1.0 and carries full 48 LVDS lines. The board can support class compatible digital RTMs from DESY, such as DRTM-AD84 and DRTM-PZT4.
Files
Licensing
This board is licensed to D-TACQ. For more details, please visit the page here.
