DAMC-FMC2ZUP
Board Description

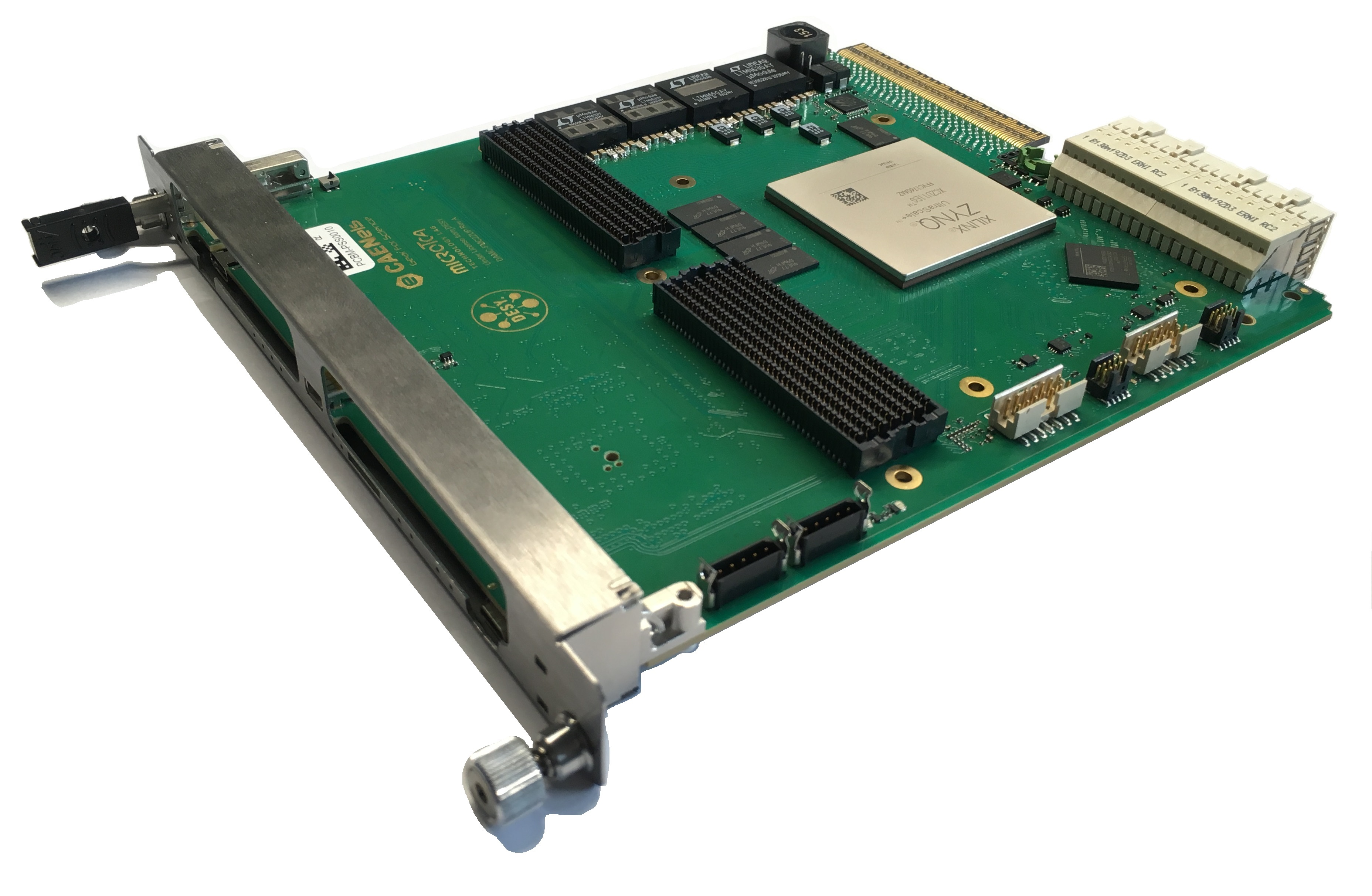

DAMC-FMC2ZUP is a high-end FMC+ carrier in MTCA.4 form factor based on the new ZYNQ UltraScale+ MPSoC. The FPGA on this carrier is the Xilinx ZU11EG / ZU19EG. The programmable logic features 653k logic cells, 2928 DSP slices (ZU11EG) / 1143k logic cells, 1968 DSP slices (ZU19EG) and 48 Multi-Gigabit Transceivers for both the two options. The Programmable System is based on a quad-core ARM Cortex-A53 operating at 1.5 GHz.
All MTCA.4 backplane ports are connected to the FPGA. PCI express (port 4-7 and 8-11) is supported in gen. 3.0 x8 configuration. The point-to-point MGT interface (low-latency link) can be used with 4 or 8 lanes width (when PCIe is used in x4 configuration). Gigabit Ethernet (port 0) is connected to Processing System (ARM) and provides convenient access for development and for running application servers. Eight M-LVDS Timing/Trigger signals and four TCLK lines are also connected.
The board features two DDR4 memory interfaces with 64 bit/4GB connected to PS and 16/1GB bits connected to PL, operating both at 2400 MT/s.
The board has two FMC sockets: 24 transceivers are routed to the FMC+ socket and can be operated at up to 28.21 Gbps. The other one has a standard HPC connector with 8 transceivers connected, capable of operating at up to 16.375 Gbps. All HA and LA lines are connected on both FMC slots.
The board also provides a front panel connector with Gigabit Ethernet interface (over a SFP+), clock input and two trigger in/out signals. The front panel Gigabit Ethernet connection can be also used as White Rabbit endpoint.
A flexible clocking system with a 16-channel bi-directional cross point switch allows to receive all clocks from and drive all clocks to the backplane (TCLKA, TLCKB, TCLKC, TCLKD) and to and from the FMCs (bi-directional clocks). The RTM interface is designed according to class D1.1 and carries full 42 LVDS lines and 2 MGT links. The board can support all existing digital RTMs from DESY, such as DRTM-AD84, DRTM-VM2, DRTM-PZT4.
The ARM Cortex-A53 processor in the MPSoC can run GNU/Linux from a MicroSD card on the front panel or from an embedded 8GB eMMC. The Processing System is equipped with an USB Type-C interface at the front panel that supports alternate mode. The alternate mode allows to connect to a Display and provides an USB 3.0 interface at the same time, providing the possibility to omit CPU boards in MTCA systems.
Two transceivers from PS are connected to AMC port 2 and 3, allowing attachment of up to two standard off-the-shelf MicroTCA SATA cards with hard drives or SSDs. Being supported by all modern development tools by Xilinx, such as Vivado, HLS, Yocto, Petalinux, SDSoC and SDAccel, DAMC-FMC2ZUP is a board capable of addressing ever-growing needs in terms of processing power, while also reducing development time. Combination of a large FPGA and a powerful CPU provides extreme flexibility required by a general-purpose FMC carrier.
