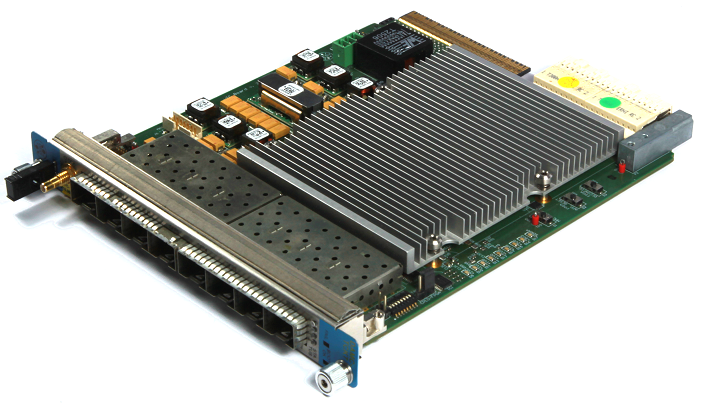

DAMC-TCK7
Board Description
The AMC-based Controller (DAMC-TCK7) board is a general purpose high-performance low-latency data processing unit designed according to the PICMG MTCA.4 specifications.
The module provides processing power, data memory, communication links and reference clock signals. The module was originally designed as a LLRF (Low Level Radio Frequency) cavity field stabilizing controller for standing-wave linear accelerators. However, the application of the board is much wider for systems requiring low latency and high speed digital signal processing.
The AMD FPGA (Field Programmable Gate Array) device available on the DAMC-TCK7 board delivers a computing power and memory for low- latency digital signal processing. The FPGA supports a number of Low Latency Links (LLLs) available on the front panel, at the backplane and a Rear Transition Module (RTM) Zone 3 connector, working with a few Gbps throughput.
Files
Licensing
This board is currently not licensed. If you’re interested in learning more or purchasing the board, feel free to reach out to us for further details!
