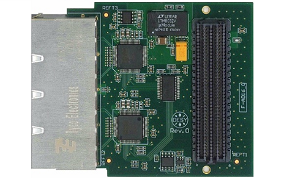

DFMC-AD16
Board Description
The DFMC-AD16 is a cost-efficient FPGA mezzanine card (FMC) which is electrically compatible and mechanically close to ANSI/VITA 75.1.
It offers sixteen input channels that can be operated in single-ended mode or in differential mode (mode determined by populated ADC chip). The card can accept ±5 V or ±10 V input voltages (selected via software)
The card is designed for low-speed monitoring applications with 23 kHz input bandwidth that can be sampled at up to 200 kSPS.
The board contains digital circuits such as FRU EEPROM, Unique ID serial number and a 12 bit temperature sensor. It contains level translators to accept any FMC Voltage (Vadj) from 1.2 V to 3.3 V so that the board will fit into many different FMC carriers.
Files
Licensing
This board is currently not licensed. If you’re interested in learning more or purchasing the board, feel free to reach out to us for further details!
