DFMC-SIO
Board Description

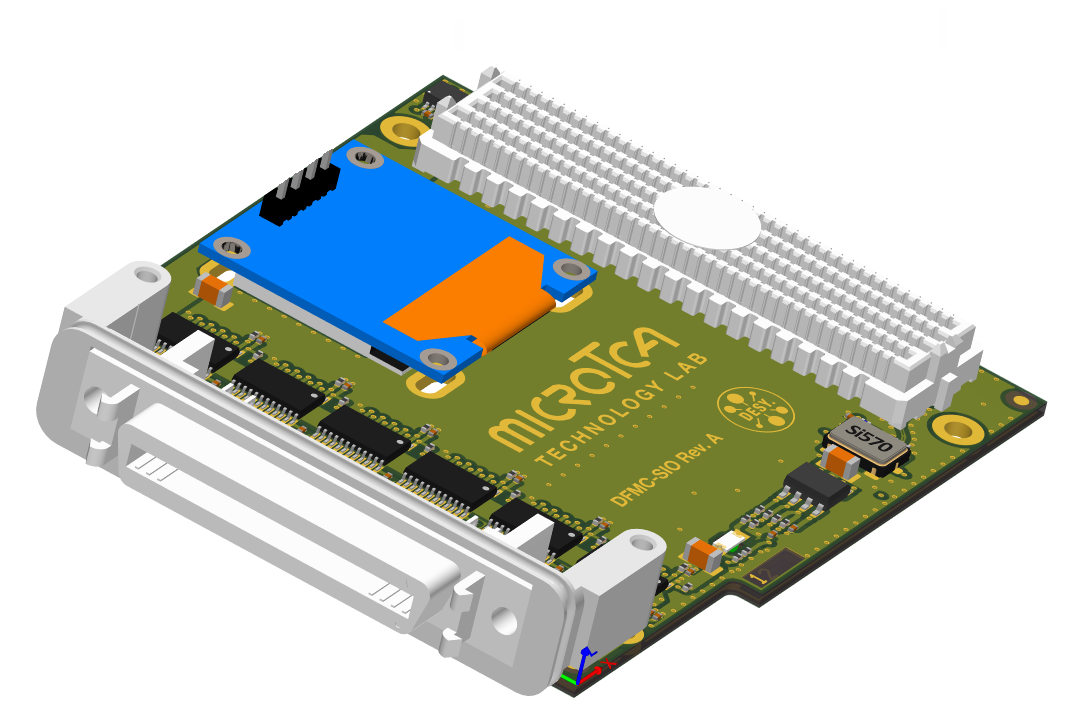

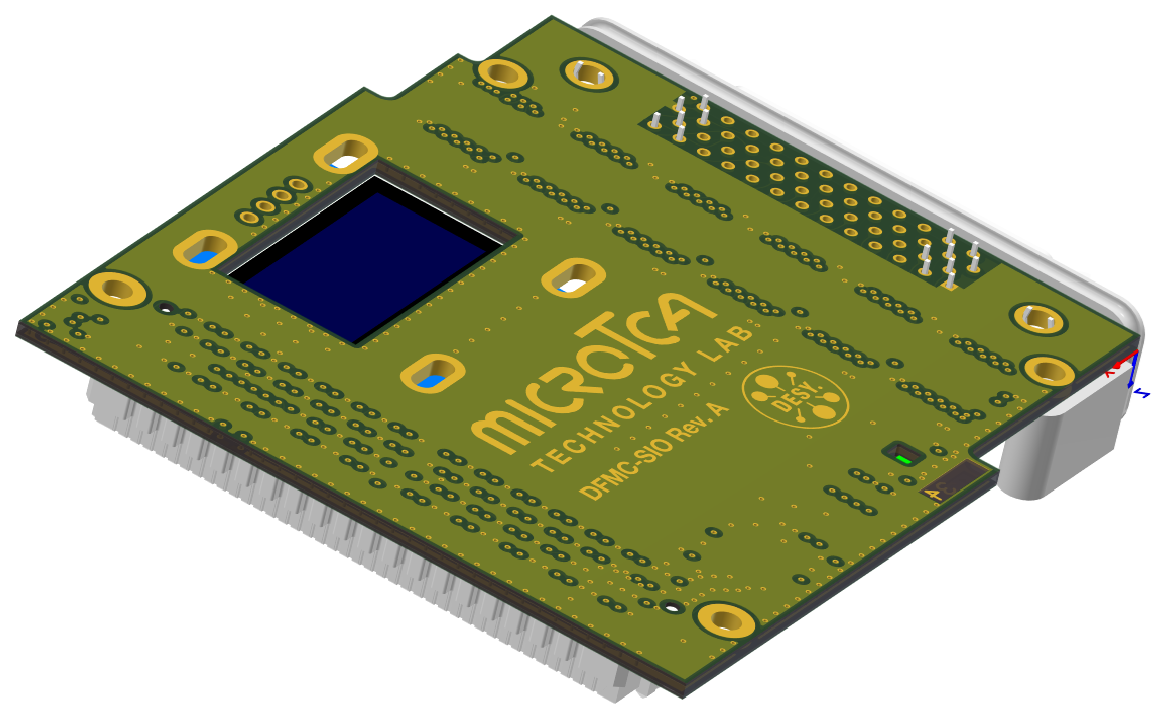

The Simple IO Board is a standard-compliant, low-pin-count FMC (FPGA Mezzanine Card) designed for flexible I/O experimentation and educational use. This compact board routes 48 FMC signals to an MDR connector, offering a convenient interface for prototyping and testing. Each group of 8 bi-directional pins has a configurable direction, allowing for dynamic I/O control tailored to application needs. The board operates at 3.3V logic levels, ensuring compatibility with a wide range of systems. A freely I2C-programmable SI570 oscillator (10–280 MHz) is included to generate clock signals for MGT applications, offering broad frequency flexibility. Additionally, a dot matrix OLED display is integrated, ideal for real-time status display, educational purposes, and system demonstrations.
Features
- Standard-Comliant Low-Pin-Count FMC Board
- Brings out 48 FMC signals to MDR Connector
- Bi-Directional pins with configurable direction per each 8 bit
- freely I2C-programmable SI570 Oscillator (10-280 MHz) for MGT clock generation
- 3.3V Levels
- Dot matrix OLED display for education and demonstration purposes
Files
Licensing
This board is currently not licensed. If you’re interested in learning more or purchasing the board, feel free to reach out to us for further details!
