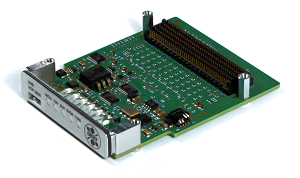

DFMC-TESTADP
Board Description
The DFMC-TESTADP is an FPGA Mezzanine Card (FMC) for testing FMC Carriers. It is a tool for carrier developers for testing the full characteristics and connectivity of their FMC carrier interface. The TESTADP features loopbacks on all FMC differential pairs on the HPC connectors. In addition, it provides an on-board, user-programmable low-jitter clock generator supporting reference clocks which are required for PCIe, SATA, SRIO, Fiber Channel or Gigabit Ethernet protocols. It checks also the supply voltage of the FMC carrier connections.
Applications:
-
FMC carrier board testing during development or post-production
-
FMC carrier board electrical validation
Files
Licensing
This board is currently not licensed. If you’re interested in learning more or purchasing the board, feel free to reach out to us for further details!
