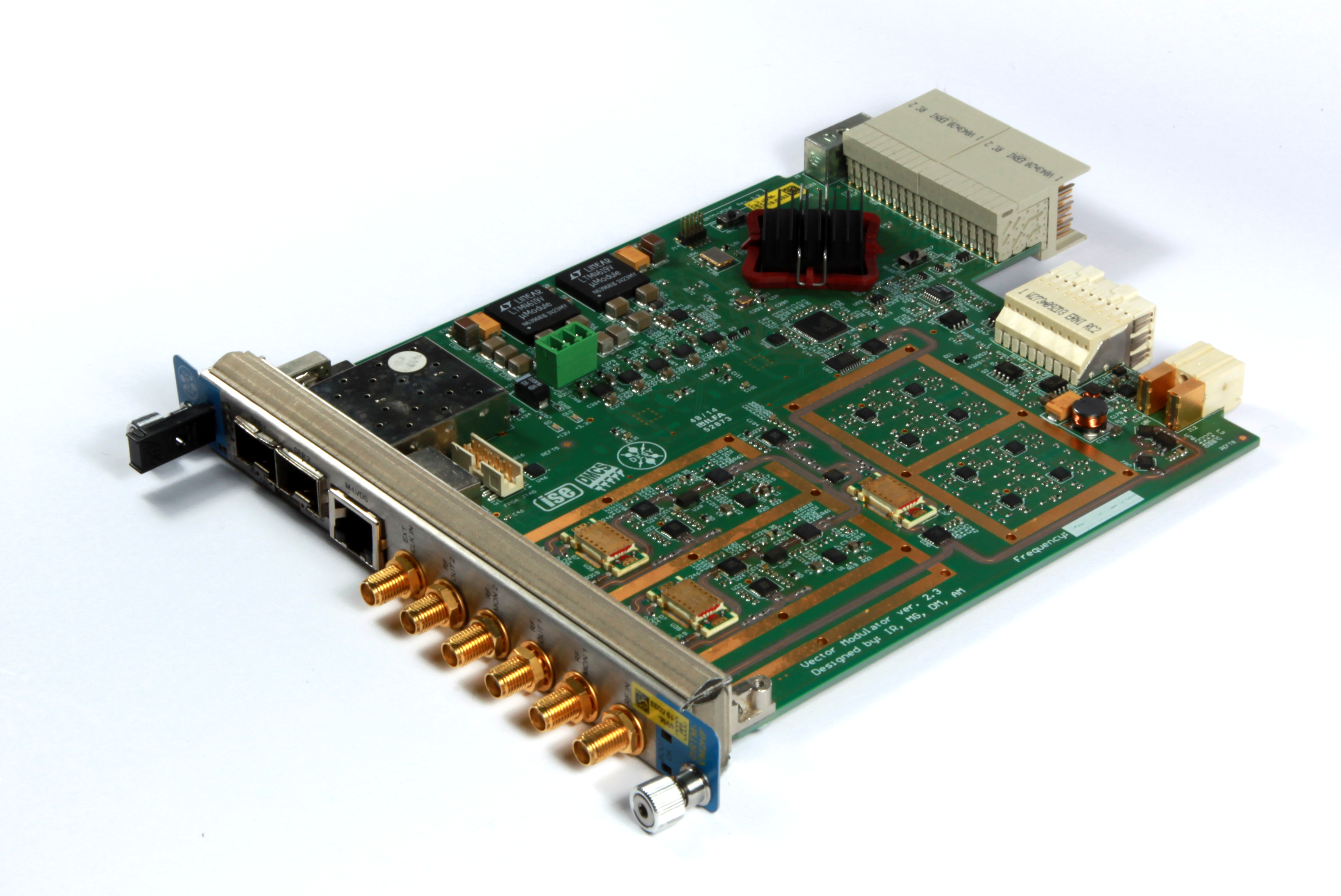

DRTM-VM2HF
Board Description
RTM 2 Channel Vector Modulator
The DRTM-VM2HF is a two channel high frequency vector modulator RTM module compliant to the MTCA.4 specification. The unit operates at input center frequencies of 1.5 to 6 GHz. It offers an excellent phase short-term stability of < 60 fs (RMS) in the range of 10 Hz to 10 MHz. The DRTM-VM2HF allows vector modulation of the carrier signal with 16-bit resolution in two independent channels. Modulation signal bandwidth ranges up to 50 MHz. Output signal power can be adjusted with software programmable attenuators for accurate full-scale operation. The unit supports external reference and clock input signals from the front panel and from the RF-backplane. The module offers integrated input and output power level monitors. Data is provided using low latency Multi Gigabit Transceivers (MGTs) or parallel LVDS interface via Zone 3 connector. An additional debug connector is available on the front panel.
Features
- Double width per MicroTCA.4, Rear-Transition Module (RTM), Class D1.2 compatible
- 2 channel high-frequency vector modulation at 1.5 - 6 GHz
- Non linearity error < -55 dBc (0.2%)
- Short-term PM stability < 60 fs (RMS) [10 Hz,10 MHz]
- Modulation bandwidth DC – 50 MHz
- Calibration capability
- 16 bit resolution on each I and Q channel
- Programmable attenuators
- Reference and clock from front panel or RF-backplane
- On-board input and output power level monitoring
- High-speed low-latency connection to AMC module and SFP+ cage (10 GBPS)
- Module management and diagnostics
- RoHS compliant
- Options: RF-backplane support
Files
Licensing
This board is currently not licensed. If you’re interested in learning more or purchasing the board, feel free to reach out to us for further details!
