MTCA BRINGUP Adapter Mechanics
Description

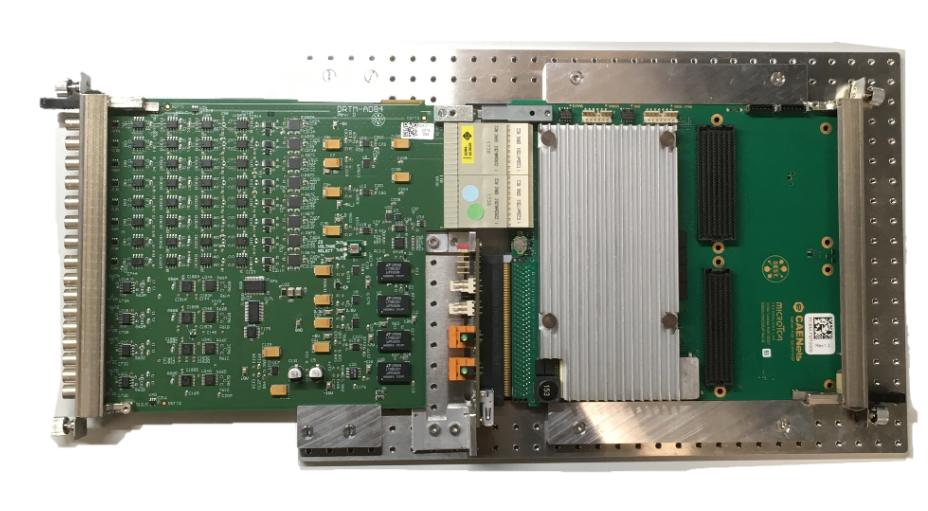

DESY has designed a complete mechanical setup for the MicroTCA Bring-Up Adapter and MicroTCA Bring-Up Adapter SFP+ that ensures both ease of use and board protection.
It allows - Installation of the bring-up adapter. - Guided sliding mechanism for straight insertion and removal of the AMC board. - Bottom-side access, thanks to the open frame design. - RTM installation capability, supporting rear transition modules. - Safe handling, preventing tilting of the board which could damage the AMC. - Fan installation support, enabling adequate cooling.
This design is highly practical, since it combines accessibility while ensuring reliable handling without allowing tilting of the AMC.
Files
Licensing
The manufacturing files provided above are available for download under the Creative Commons license, facilitating independent production.
